I Tried to Steal AES Keys from an STM32 Chip (And Failed Spectacularly)

inavarhs · April 28, 2026, 10:21am

The Plan That Sounded Simple

Here’s what I wanted to do: Extract AES encryption keys from an STM32 microcontroller by watching its power consumption.

Not by hacking the software. Not by brute-forcing the key. But by literally measuring how much electricity the chip uses while it encrypts data.

Sounds wild, right? But it’s a real attack. It’s called Side Channel Analysis (SCA).

And if that didn’t work, I had a backup plan: Voltage Glitching - where you mess with the chip’s power supply at exactly the right moment to make it skip security checks.

Spoiler: Neither worked. But I learned exactly why they didn’t work, and that’s actually more valuable than if they had.

Why Even Try This?

You know how we assume cryptography is secure? We think: “My device uses AES-128 encryption. The key is 128 bits. No one can crack that.”

And mathematically, you’re right. Brute-forcing AES-128 would take longer than the age of the universe.

But here’s the thing: Math doesn’t account for physics.

When your chip encrypts data, it consumes power. And that power consumption changes based on what data it’s processing. Those tiny fluctuations? They leak information about the secret key.

This isn’t theoretical. It’s how real attacks happen.

STM32 microcontrollers are everywhere:

Smart home devices
Car electronics
Industrial sensors
Medical devices
IoT gadgets you use every day

If someone with physical access can extract keys from a development board, they can do it to production devices too.

So I wanted to see: How hard is it, really?

The Target: STM32 Nucleo F303RE

I used an STM32 Nucleo F303RE development board. It’s cheap, widely available, and runs an ARM Cortex-M4 processor.

I programmed it with AES-128 encryption firmware. And I enabled Readout Protection (RDP) - the built-in security feature that’s supposed to prevent exactly what I was trying to do.

The goal:

Capture power traces while the chip encrypts data
Use Correlation Power Analysis (CPA) to extract the AES key
If that fails, try voltage glitching to bypass the protection

Sounds straightforward. It wasn’t.

The Tool: ChipWhisperer Lite

For this kind of attack, you need specialized hardware. I used the ChipWhisperer Lite.

Think of it as an oscilloscope specifically designed for side-channel attacks. It can:

Provide power to the target board
Capture high-speed power measurements
Trigger captures at precise moments
Inject voltage glitches

It’s essentially the standard tool for hardware security research.

Step 1: Destroying the Board (On Purpose)

Development boards are designed for convenience, not side-channel analysis. They have:

Voltage regulators that smooth out power
Decoupling capacitors that filter noise
Multiple power domains running in parallel

All of these things hide the signal I’m trying to measure.

So I had to modify the board. Aggressively.

Modification 1: Power Domain Isolation

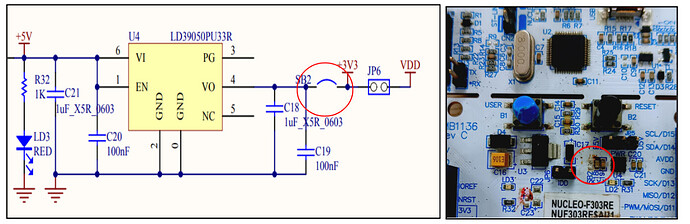

The STM32 Nucleo has a solder bridge called SB2 that connects the onboard voltage regulator to the MCU’s power rail.

This is a problem because:

The regulator draws its own current, contaminating my measurements
It dampens voltage glitches before they reach the chip

Solution: Cut the solder bridge.

I carefully removed the solder connecting SB2, physically separating the ST-Link programmer’s power domain from the microcontroller’s power domain.

Now the ChipWhisperer is the only power source for the MCU.

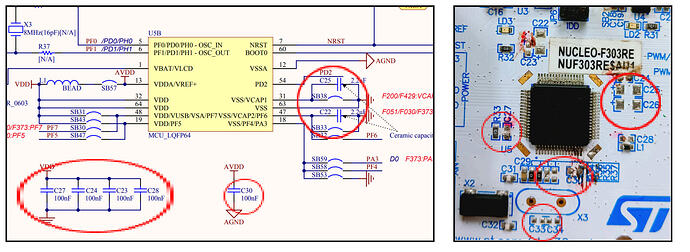

Modification 2: Ripping Out Capacitors

Next target: Decoupling capacitors.

These are the tiny components soldered near the MCU that filter out high-frequency noise. Normally, they’re essential for stable operation.

But for side-channel analysis, they’re the enemy.

Why? Because the “noise” they filter out is exactly the signal I need. When AES runs, the chip’s logic gates switch states, causing tiny spikes in current draw. Those spikes carry information about the key.

Decoupling capacitors smooth out those spikes. They turn a sharp, information-rich signal into a flat, useless blur.

So I desoldered them. All of them.

The board became less stable. It might crash more easily. But the power traces became clean.

Modification 3: Current Measurement Path

The Nucleo board has a jumper called JP6 for current measurement. I removed the jumper cap, creating a break in the VDD supply line.

Then I inserted a 10-ohm shunt resistor between the two pins.

Here’s how this works: Current flows through the resistor. Voltage drop across the resistor = Current × Resistance (Ohm’s law). The ChipWhisperer measures that voltage drop to reconstruct the current draw.

It’s like putting a glass window in the power line so you can see what’s flowing through it.

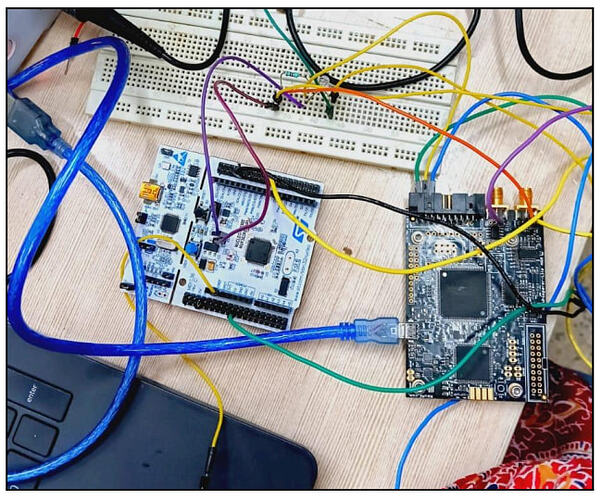

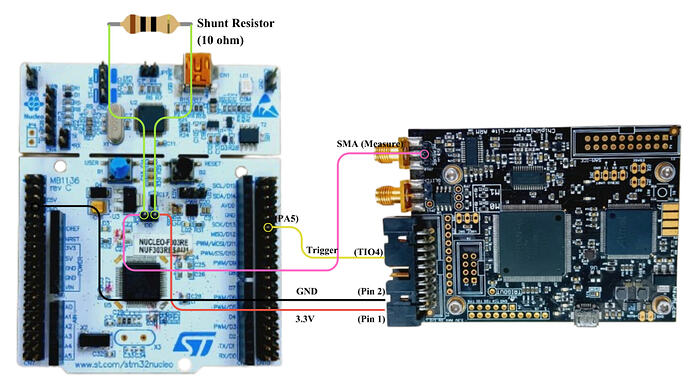

The Wiring

Here’s how everything connects:

ChipWhisperer 3.3V → JP6 right pin (power supply)
ChipWhisperer GND → STM32 GND (common ground)
ChipWhisperer TIO4 → STM32 PA5 (trigger signal)
ChipWhisperer measurement probe → JP6 left pin (voltage measurement across shunt)

Critical detail: Remove ALL other jumpers. No ST-Link power. No USB power. Nothing.

If you leave anything else connected, it injects noise into your traces and ruins everything.

The Software Side

Programming the Target

I flashed simple AES firmware onto the STM32. The code looks like this:


// Trigger HIGH

HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET);

// AES operation

AES_encrypt(input, key, state);

// Trigger LOW

HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET);

The trigger pin (PA5) goes HIGH right before AES starts and LOW right after it finishes.

This tells the ChipWhisperer: “Start recording NOW.”

Without this timing signal, the ChipWhisperer would be blindly recording random power consumption with no idea when the interesting part happens.

Configuring the ChipWhisperer

I set up the capture parameters:


scope = cw.scope()

scope.clock.clkgen_freq = 8E6 # 8 MHz clock

scope.clock.adc_src = "clkgen_x4" # ADC samples at 4x = 32 MHz

scope.adc.samples = 3000 # Capture 3000 data points

scope.adc.offset = 200 # Start 200 samples after trigger

scope.adc.basic_mode = "rising_edge" # Trigger on rising edge

Translation:

The chip runs at 8 MHz
The ADC (Analog-to-Digital Converter) samples at 32 MHz
Each capture records 3000 samples
Triggering happens on the rising edge of the trigger signal

This configuration is critical for synchronization. If your traces aren’t aligned, correlation analysis fails.

First Capture: “What Am I Even Looking At?”

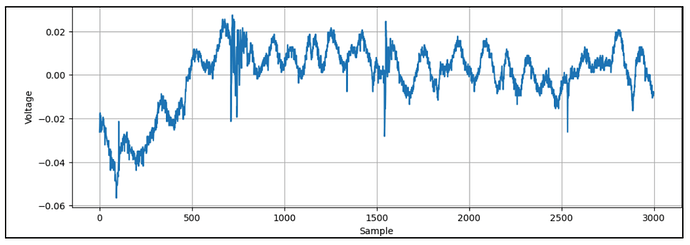

I ran the capture script. The ChipWhisperer recorded a trace.

I plotted it.

It looked like complete noise.

No clear pattern. No distinguishable structure. Just random voltage fluctuations.

“Maybe I need more traces,” I thought.

Attempt 2: Overlay 300+ Traces

In side-channel analysis, you capture hundreds or thousands of traces and average them together. The random noise cancels out, and the signal emerges.

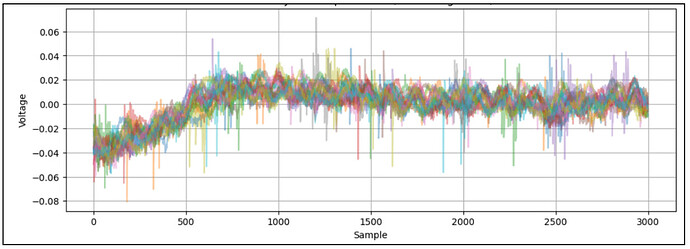

So I captured 300+ traces and overlaid them.

Still nothing.

A proper AES trace should show:

Clear, repeating patterns (the 10 AES rounds)
Bursts of activity at specific intervals
Traces that align perfectly when overlaid

Mine showed none of that. Just a mess of colored lines that didn’t converge.

Attempt 3: Filtering and Processing

Maybe the signal is buried in noise? Let me try signal processing.

I applied:

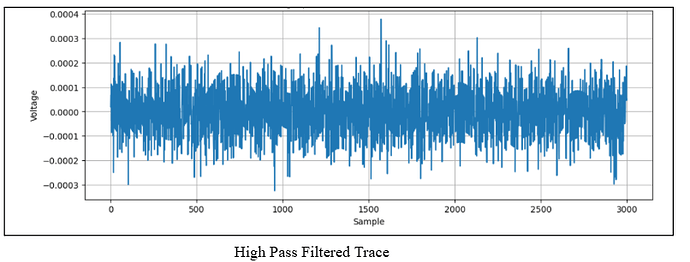

High-pass filtering - to remove low-frequency drift

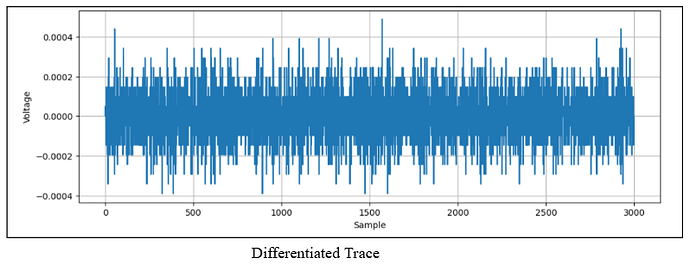

Differentiation - to highlight rapid changes
Averaging - to reduce random noise

Still nothing useful. No AES rounds. No structure. Just processed noise.

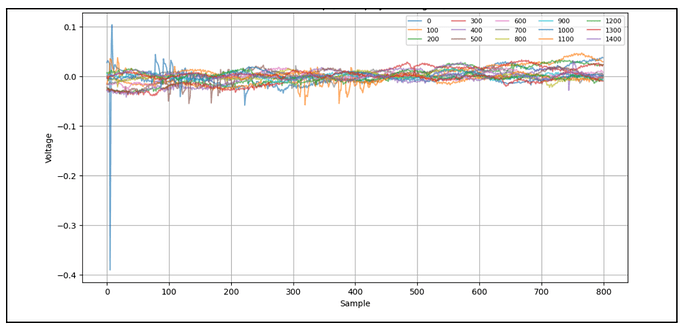

Attempt 4: Offset Sweep

Maybe I’m capturing the wrong time window? Maybe AES is happening somewhere else?

I ran an offset sweep - capturing traces at different time offsets to scan through the entire execution window.

Results:

Big spike at sample 0 (that’s the trigger pulse)
Flat, low-amplitude signal everywhere else
No sudden bursts of activity
No region showing AES-like patterns

Conclusion: I’m not capturing AES at all.

The Moment of Truth: Trigger Verification

I went back to basics. Is the trigger even working?

I monitored the trigger pin states in real-time:


Monitoring TIO states...

Toggle your trigger pin in firmware!

(1, 0, 0, 0)

(1, 0, 0, 0)

(1, 0, 0, 0)

(1, 0, 0, 0)

...

Wait.

The trigger state never changes. It’s stuck at (1, 0, 0, 0).

The pin isn’t toggling. The ChipWhisperer isn’t receiving the trigger signal.

That’s the problem.

What This Means

Without a working trigger:

The ChipWhisperer captures at random times
There’s no synchronization with AES execution
Every trace is meaningless

It doesn’t matter if AES is running. It doesn’t matter if power consumption is leaking information. If you’re not capturing at the right moment, you capture nothing.

It’s like trying to photograph lightning without knowing when it strikes. You just get pictures of empty sky.

Why Did This Happen?

I can think of a few reasons:

1. Wiring issue

Maybe the trigger wire isn’t making good contact
Maybe there’s a loose connection somewhere

2. Firmware problem

Maybe the GPIO pin isn’t configured correctly
Maybe the code isn’t actually running

3. Voltage level mismatch

The STM32 outputs 3.3V logic
The ChipWhisperer expects 3.3V input
But maybe there’s an impedance issue or signal degradation

4. Timing issue

Maybe the trigger pulse is too short
Maybe the ChipWhisperer’s trigger detection threshold is wrong

I need to debug this systematically with an oscilloscope to see what’s actually happening on that wire.

The Glitching Plan (That Never Happened)

I also wanted to try voltage fault injection.

The idea: Send a brief voltage spike or drop to the chip’s power rail at exactly the right moment. This can cause:

Instruction skips (the CPU misses an operation)
Bit flips in memory
Logic errors in comparisons

For example, if the firmware checks the RDP protection level like this:


if (rdp_level == LEVEL_1) {

// Block debug access

}

A well-timed glitch might corrupt that comparison, making the chip think protection is disabled.

But you need a working trigger to know when to glitch. Without timing synchronization, you’re just randomly zapping the chip and hoping something breaks.

So I couldn’t test this either.

What I Learned (The Hard Way)

1. Trigger Signals Are Critical

Side-channel analysis is 90% about timing. If you can’t synchronize your captures with the target operation, nothing else matters.

2. Hardware Modifications Are Necessary

You can’t just plug a dev board into a ChipWhisperer and expect it to work. You need to:

Isolate power domains
Remove filtering components
Insert measurement shunts
Verify every connection

3. Debugging Is Non-Negotiable

When something doesn’t work, you need to trace the problem systematically:

Verify wiring
Check trigger signals
Inspect firmware
Validate ADC settings
Test each component individually

4. Failure Is Part of the Process

I didn’t extract any keys. I didn’t bypass any protection. But I learned exactly where the setup breaks and how to fix it.

That’s progress.

Why This Matters for IoT Security

Even though I failed, this experiment shows something important: Side-channel attacks are real, and they’re not that hard to attempt.

I used:

A $200 ChipWhisperer
A $15 dev board
Open-source software
Basic soldering skills

The barrier to entry is low. And once you get the trigger working correctly (which I will eventually), the attack pipeline is well-documented and repeatable.

Production IoT devices often use the same STM32 chips. If they expose debug ports, use weak protection levels, or rely solely on RDP, they’re vulnerable.

What Actually Stops These Attacks?

1. No physical access

If an attacker can’t touch the device, they can’t attack it
Tamper-evident enclosures help
Potting (encasing in epoxy) makes hardware access very difficult

2. Remove debug interfaces

Don’t expose SWD/JTAG pins on production boards
Use one-time programmable (OTP) fuses to permanently disable debug

3. Use proper RDP levels

RDP Level 2 permanently locks the chip
No debug, no firmware extraction, ever
Downside: If something breaks, the chip is dead

4. Power supply filtering

Keep decoupling capacitors in production devices
Add extra filtering to smooth power consumption
Makes side-channel attacks much harder

5. Randomized execution

Add random delays in crypto operations
Shuffle AES round order
Desynchronizes power traces

6. Use secure elements

Offload key storage to dedicated crypto chips
Even if the MCU is compromised, keys are safe

7. Detect glitching attempts

Monitor supply voltage for anomalies
Reset or shut down if glitches detected

None of these are perfect. But layered together, they make attacks exponentially harder.

What’s Next?

I’m not giving up on this. Here’s what I need to do:

Immediate fixes:

Use an oscilloscope to verify the trigger signal on PA5
Check firmware GPIO configuration
Test with a known-good trigger setup
Validate ChipWhisperer trigger detection settings

Once the trigger works:

Capture clean, synchronized AES traces
Perform CPA to extract the key (with RDP disabled first)
Re-enable RDP and see if the attack still works
Attempt voltage glitching to bypass RDP

Advanced experiments:

Test different glitch widths, offsets, and amplitudes
Try instruction-skip attacks on bootloader checks
Compare attack success rates with different STM32 models

The Bigger Lesson

This experiment didn’t go as planned. I didn’t break encryption. I didn’t bypass security. I spent hours modifying hardware and writing code just to discover that my trigger wasn’t working.

But here’s the thing: This is what real hardware hacking looks like.

It’s not like the movies where you plug in a USB stick and bypass all security in 30 seconds. It’s:

Careful hardware modification
Systematic debugging
Failed attempts
Learning from mistakes
Iterating until it works

And when it finally does work, you’ll understand the system at a level that no amount of reading documentation can teach you.

That’s the point.

Technical Summary

Target Hardware:

STM32 Nucleo F303RE
ARM Cortex-M4 processor
AES-128 encryption firmware
RDP Level 1 enabled

Attack Hardware:

ChipWhisperer Lite
10-ohm shunt resistor
Modified target board (power isolated, capacitors removed)

Attack Method:

Correlation Power Analysis (CPA)
Voltage fault injection (planned)

Modifications Made:

Removed solder bridge SB2 (power isolation)
Removed decoupling capacitors (signal clarity)
Removed JP6 jumper (current measurement path)
Inserted shunt resistor (current sensing)

Configuration:

Clock: 8 MHz
ADC sample rate: 32 MHz
Capture length: 3000 samples
Trigger mode: Rising edge

Result:

Key extraction: Failed
Root cause: Trigger signal not reaching ChipWhisperer
Captured traces: Unsynchronized, analytically invalid

Status:

Hardware setup: Complete
Trigger issue: Identified but not resolved
Next step: Debug trigger signal with oscilloscope

Key Takeaways

Side-channel attacks exploit physics, not math - Cryptography can be perfect, but hardware leaks information through power, timing, and electromagnetic radiation.
Trigger synchronization is everything - Without precise timing, power traces are useless noise.
Hardware modification is required - Development boards are designed for convenience, not attack resistance. You need to strip away protections to see the raw signal.
Debugging is 90% of the work - When attacks fail, it’s usually not because the attack is impossible, but because something in your setup is broken.
Physical access changes everything - Software security doesn’t matter if an attacker can manipulate hardware directly.
Defense requires layers - No single protection mechanism is sufficient. You need multiple overlapping defenses.
Failure teaches more than success - I learned exactly where this attack breaks and how to fix it. That’s more valuable than blindly following a tutorial that works.

This was a security research experiment to understand hardware attack techniques. The goal is to improve embedded system security by understanding real attack vectors. If you’re building IoT devices, please implement proper security measures - your users depend on it.

Want to see this attack work? I’ll post a follow-up once I get the trigger fixed and successfully extract an AES key. Subscribe to stay updated.

And if you’re working on similar hardware security research, let me know what I missed. I’m always learning.
